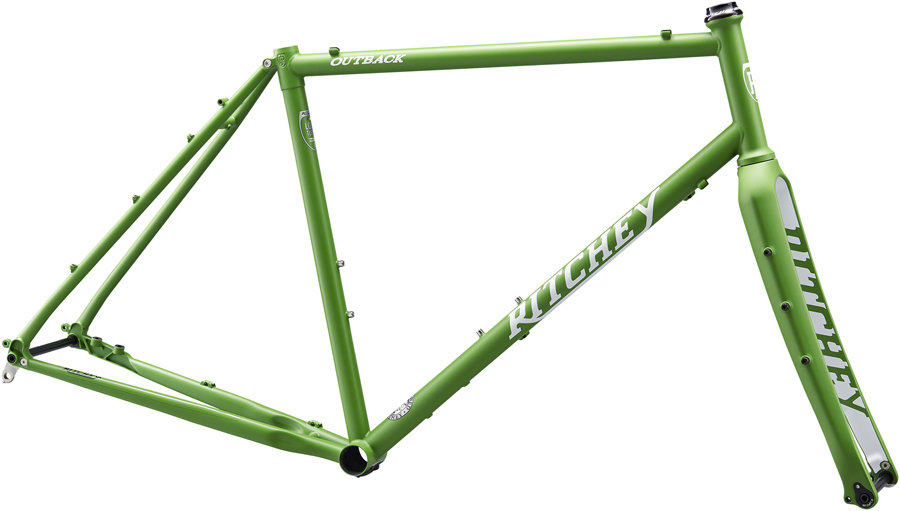

Ritchey Outback Frameset

Ritchey Outback Frameset
  • Color: Matte Green/White
$1,599.00
Color: Matte Green/White
Size: X-Small
Please select options Unavailable

Details

Tom Ritchey rides about 10,000 miles (16,000 km) per year, and most of that is off-road. Combine that with his more than 40 years of designing and building bicycles, and it’s no wonder the Outback has become an icon in the gritty world of gravel and adventure bikes.

Updated for 2020, the new Outback now sports several practical and adaptable features that offer riders the ability to chase epic ride experiences beyond the end of the road and the end of the day. Rack and fender mounts help to keep things dry and expand the load-carrying capacity for longer bikepacking adventures, while clearance for 700c x 48mm or 650b x 2.0" tires opens up a whole new world of possibilities. The frame accepts flat-mount disc calipers, and the new all-carbon fiber Ritchey Adventure Fork with multi-purpose mounts on the legs gives you more places to stow the supplies you gather at the last cafe.

Painstakingly TIG-welded with proprietary triple-butted Ritchey Logic steel tubing, the Outback frame delivers the legendary Ritchey ride quality that’s resilient over the harshest terrain and delightfully responsive when you want to open it up.

Bikepacking, road, off-road, trail, expedition, you name it…the new Ritchey Outback is designed to do it all.

- Includes new Ritchey Adventure Fork with multipurpose mounts
- Accepts 700c x 48mm or 650b x 2.0" tires
- Features rack and fender mounts

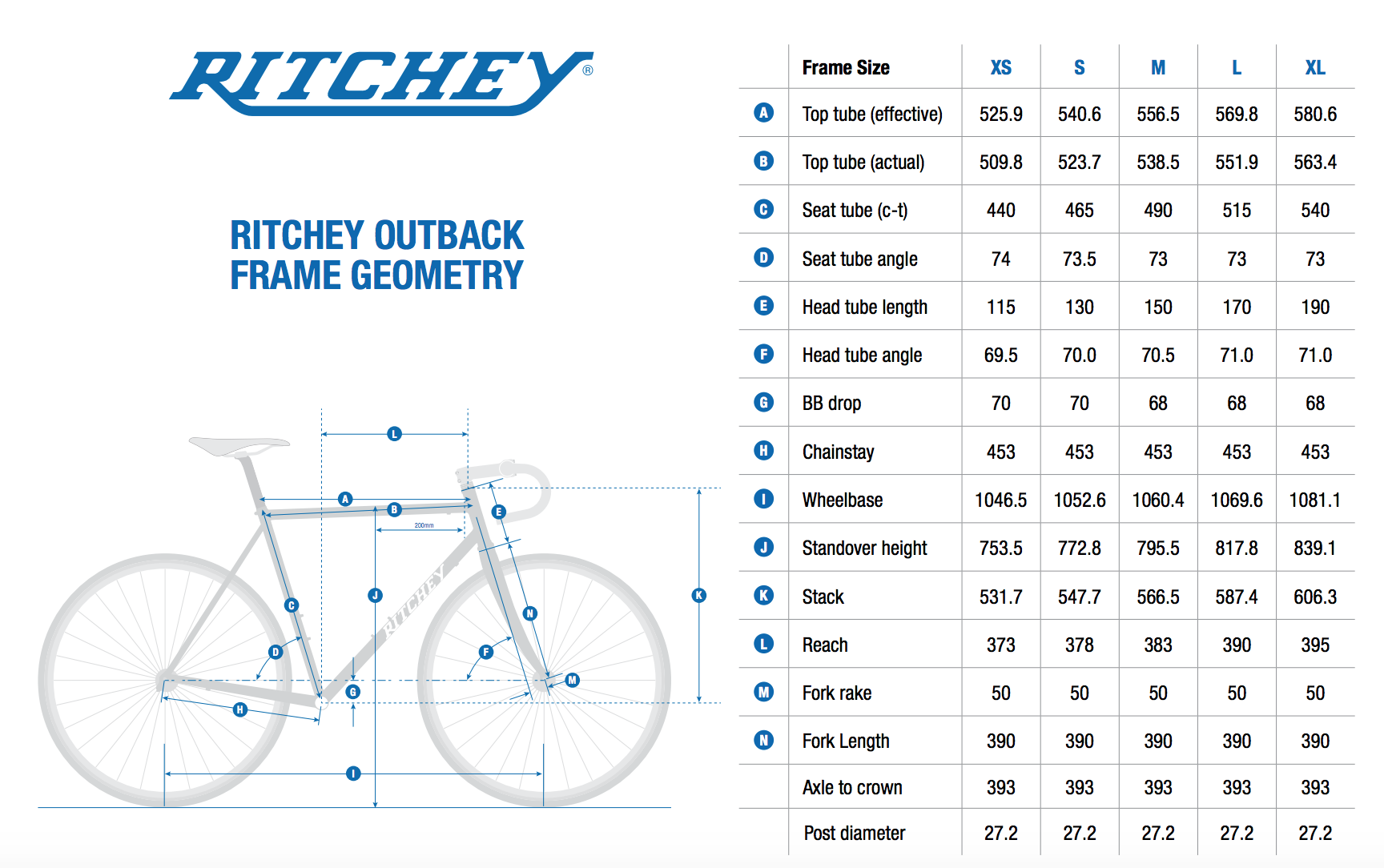

Sizes:
Frame SizeX-SmallSmallMediumLargeX-Large
Top tube (effective) (mm) 526 541 557 570 581
Top tube (actual) (mm) 510 524 539 552 563
Seat tube (c-t) (mm) 440 465 490 515 540
Seat tube angle 74° 73.5° 73° 73° 73°
Head tube length (mm) 115 130 150 170 190
Head tube angle 69.5° 70° 70.5° 71° 71°
BB drop (mm) 70 70 68 68 68
Chainstay (mm) 453 453 453 453 453
Wheelbase (mm) 1047 1053 1060 1070 1081
Standover height (mm) 754 773 796 818 839
Stack (mm) 532 548 567 587 606
Reach (mm) 373 378 383 390 395
Fork rake (mm) 50 50 50 50 50
Fork Length (mm) 390 390 390 390 390
Axle to crown (mm) 393 393 393 393 393
Post diameter (mm) 27.2 27.2 27.2 27.2 27.2

Specs

Frame Heat-treated, triple-butted Ritchey Logic steel tubing, TIG welded, compatible with 700 x 48mm or 650 x 2.0in (depending on tire/rim manufacturer)
Fork New Ritchey Carbon Adventure Fork
Axles Front: 100 x 12mm
Rear: 142 x 12mm
Wheel Compatibility 700c
Brake Compatibility Flat-Mount Disc
Seat Post 27.2mm

* Subject to change without notice.

Part Numbers

Option UPC MPN
Matte Green/White / X-Small 796941974028 97552897001
