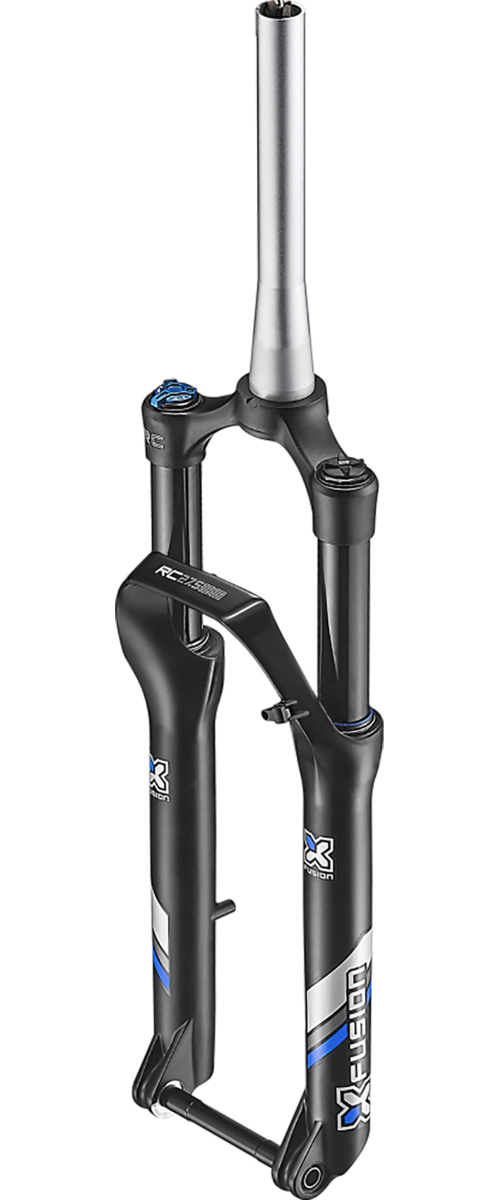

X-Fusion RC32 RL

X-Fusion RC32 RL
  • Color: Black
Color: Black
Travel: 130mm
Wheel Size: 27.5-inch/650B
Axle: 110 x 15mm
Please select options Unavailable


XFusion’s RC32 series family is our all-never 32mm stanchion, 27.5 specific, XC, and trail fork. It has up to 120 mm of travel, remote compatible, or lever-actuated lockout. In addition to the performance features, the RC32 is offered with either 1 1/8” or tapered steer tube configurations.


- The RC damper has low-speed compression and near-lockout firmness
- Remote Lockout Capable


- Weight: 4.1 pounds/1870 grams
- Wheel Size: 27.5 inch
- Travel: 130mm (ITA 80/100/130mm)
- Stanchion: 32mm Aluminum
- Spring: Air
- Damper: RC Cartridge Damper
- Adjustments: Compression(open to firm), Rebound, Air Spring
- Steerer: Taper Standard
- Axle: 9mm
- Colors: Flat Black
- Axle to Crown: 510mm @ 120mm of travel
- Offset:46mm
- Max Rotor Size: 180mm

Part Numbers

Option UPC MPN
110 x 15mm / Black / 130mm / 27.5-inch/650B 816022010558 22-XFRCBRC-130-203
