Surly Surly Ghost Grappler LG CUSTOM BUILD

Surly Surly Ghost Grappler LG CUSTOM BUILD
This item is currently not available.

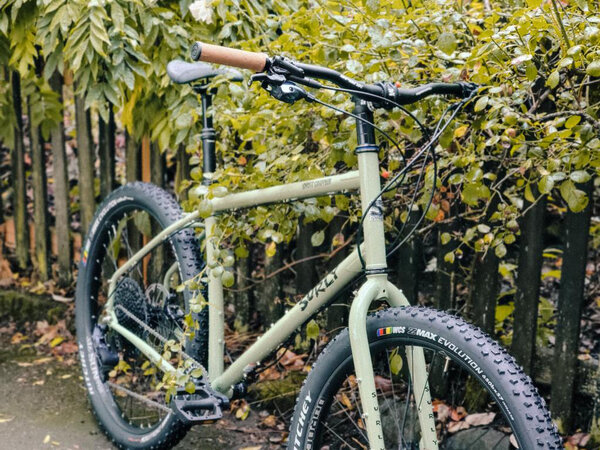

Using a Surly Ghost Grappler frame as our base we built up a custom singletrack-ripping flat bar take on the Ghost Grappler.

The Ghost Grappler is Surly's steel bikepacking trail bike. With mountain geo designed around a comfortable, confident position, it's lively and responsive on single track, double track, and other degraded surfaces. Ready to haul essential gear for all-day dirt rides and quick bikepacking excursions, captured thru-axles front and rear provide ideal stiffness and handling. Built around 27.5" wheels and compatible with internally geared hub and single-speed setups, Surly's tried-and-true Gnot-Boost spacing allows riders to run 142mm or 148mm rear hubs.

- 100% Surly Chromoly steel frame and fork, featuring Surly's proprietary 'Natch tubing, double-butted main triangle, 1-1/8" headtube, non-suspension corrected.
- Horizontal-slotted dropout, Surly Gnot-Boost spacing.
- Seat stay mounted bottle bosses on all sizes except XS, plus three-pack mounts at the top and bottom of the down tube and stealth dropper post routing.
- E.D. coated frame for increased life expectancy.
- 27.5 x 2.8" tire clearance (with or without fenders).

bike frame with labeled dimensions

Geometry Chart:
Seat Tube Length (mm) 488
Top Tube Length (Effective) (mm) 640
Head Tube Angle 69.5°
Seat Tube Angle 73.0°
BB Drop (mm) 50
Chainstay Length (mm) 425
Wheelbase (mm) 1140
Standover Height (mm) 830
Head Tube Length (mm) 220
Fork Length (mm) 420
Fork Rake (mm) 50
Stack (mm) 641
Reach (mm) 444
Stem Length (mm) 60
Stem Angle 6.0°
Handlebar Width (mm) 785
Crank Length (mm) 165
