Details

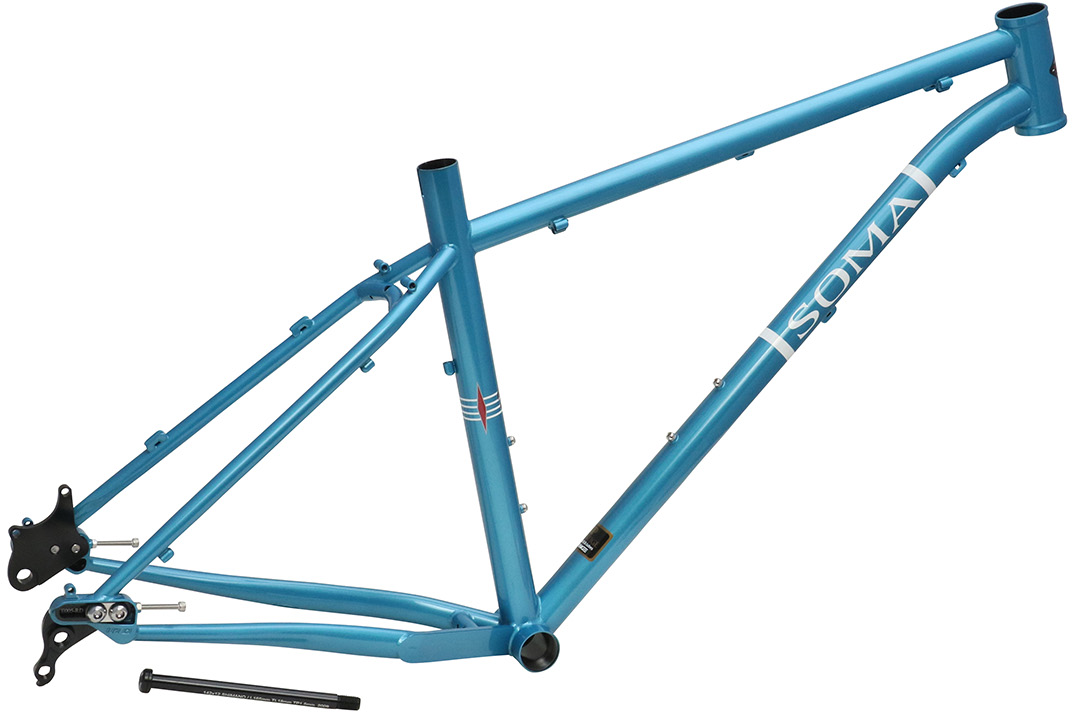

The Riff is our hardtail frame for 27.5"/650b wheels. Geometry is ideal for single-track, flowy trails, and bikepacking. Tough IRD Broski Sliding Dropouts allow you to go single-speed or geared or even run hub gears. While the industry is telling everyone to get "Boost", the Riff lets you run an OLD 142mm thru-axle (or even 135mm QR with a different insert). Another retro feature: you can use a front derailleur if you want.
Its most unusual option: The Riff is offered in a belt-drive-ready version.
- Tange Prestige heat-treated butted CrMo main tubes
- 12x142mm thru-axle (thru-axle included)
- 44mm head tube for tapered steerer tubes (tapered steerer forks will require an EC44 lower headset cup, straight steerer forks can use a ZS44 lower cup)
- Accommodates a 100/120mm travel fork (69-degree head angle with 100mm fork, 68-degree head angle with 120mm fork)
- Fits up to 27.5 x 2.8" tires
- International Standard disc brake mounts
- Use 34.9 seat clamp and 400mm post recommended
- Pelham Blue to match classic Gibson Les Paul guitars
- 4.5 lbs (14.5")
Size | X-Small | Small | Medium | Large |
---|---|---|---|---|
Seat Tube (mm) | 380 | 410 | 440 | 470 |
Top Tube, Effective (mm) | 563 / 560 | 589 / 585 | 614 / 610 | 644 / 640 |
Head Tube Angle | 66.8° / 68° | 66.8° / 68° | 66.8° / 68° | 66.8° / 68° |
Seat Tube Angle | 72.4° / 73.5° | 71.8° / 73° | 71.8° / 73° | 71.9° / 73° |
Chainstay Length (mm) | 427 | 427 | 427 | 427 |
Headtube Length (mm) | 100 | 110 | 115 | 120 |
Bottom Bracket Drop (mm) | 36 / 44 | 36 / 44 | 36 / 44 | 36 / 44 |
Standover Height (in) | 760 | 780 | 796 | 814 |
Front Center (mm) | 653 | 674 | 699 | 729 |
Wheelbase (mm) | 1076 | 1097 | 1122 | 1152 |
Frame Stack (mm) | 587 / 579 | 597 / 589 | 602 / 593 | 607 / 598 |
Frame Reach (mm) | 373 / 386 | 390 / 403 | 414 / 426 | 442 / 454 |
Fork Unsagged / Sagged (mm) | 509 / 484 | 509 / 484 | 509 / 484 | 509 / 484 |
Specs
Frame | Tange Prestige heat-treated butted CrMo steel; butted CrMo rear end |
---|---|
Fork | Sold Separately |
Pedals | Sold Separately |
* Subject to change without notice.
Part Numbers
Option | UPC | MPN |
---|---|---|
Pelham Blue / Medium | 849430041524 | 930442 |
Pelham Blue / Large | 849430041531 | 930443 |
